SKYZONE STVX SteadyView X Highly sensitive Receiver

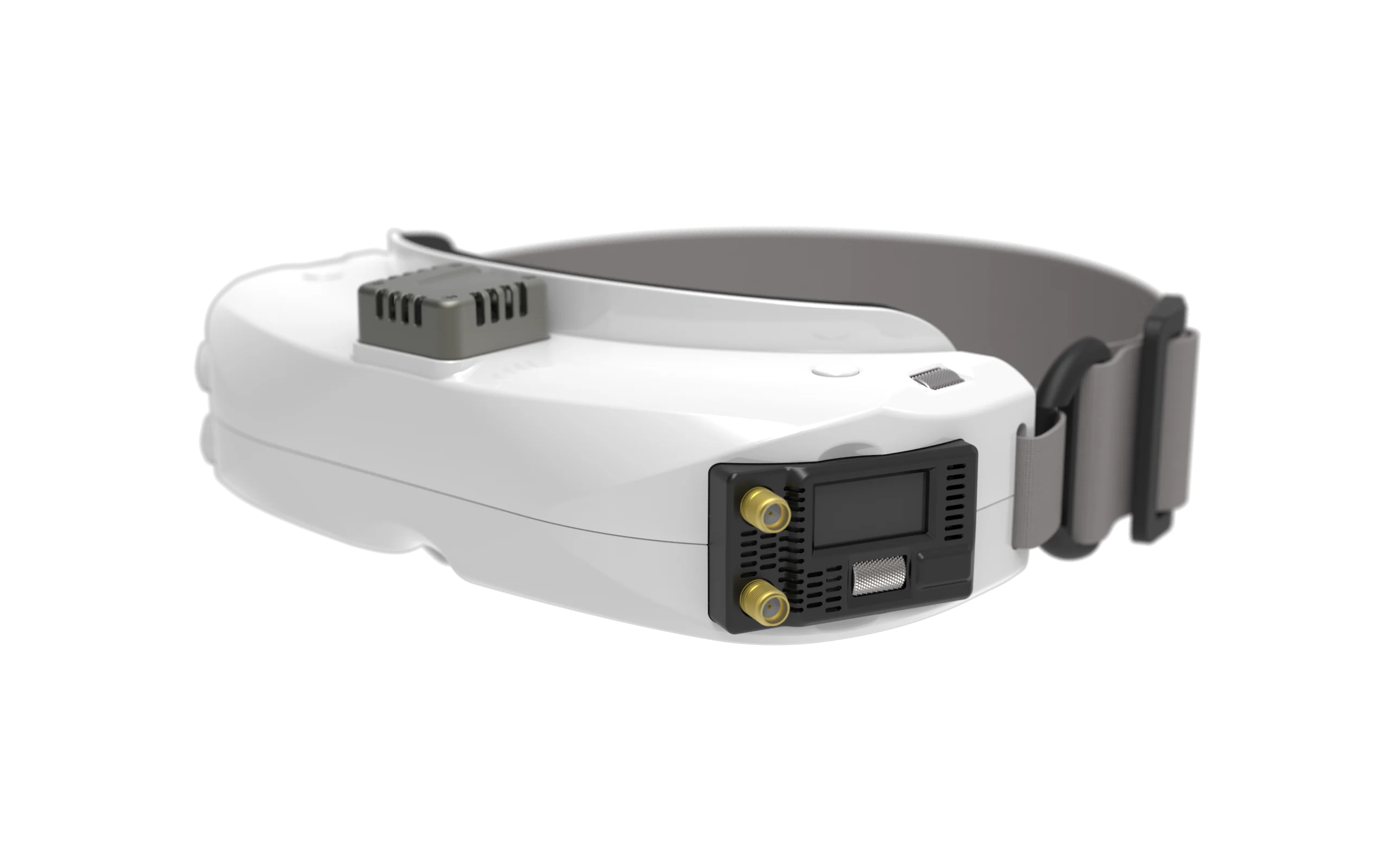

Steadyview X is an updated version of the SteadyView receiver from SKYZONE for SKY04/EV300O/COBRA/Fatshark goggles. This receiver combines two signals from the antennas into one, prevents image tearing, making it more stable even in difficult flight conditions. It is equipped with a color IPS screen and scroll wheel for easier use. The SteadyView X receiver comes with a ground station kit, so the user can mount it on any monitor or glasses with an AV IN port. In addition, the SteadView X already has an ELRS backpack built in, which will allow you to use a Lua script to synchronize the transmitter with the receiver.

Features:

• Highly sensitive: -98 dBm ± 1 dBm
• IPS screen
• Wheel control
• Ground station kit
• USB C port to support firmware updates or power on the receiver
• ELRS
• The Steadyview X 5G version supports band X and also works with 5.8G, but the sensitivity may be 1-2 dB lower, and the standard 5.8G module does not support 5G (band X)

Specifications:

• Display: 0.96 inch, color LCD
• Frequency: 5.8 (5.3-6GHz)/5 GHz
• Channels: 48
• Sensitivity: -98dBm±1dBm
• Narrow-Band Filter: Yes
• Connectors: 2x Standard SMA-K, 50Ω
• Modes: Mix1,Mix2,Mix3, Diversity, Single RX
• Video output: 1.0Vp-p Typ. / 75Ohm
• Audio output: None
• Power supply:

  • 6.5-26V,
  • consumption: 12V input *240mA Normal, 180mA Single RX
• Interface:

  • DC input: 5.5mm *2.1mm
  • A/V output: 3.5mm
  • USB: Type-C, firmware update
• Dimensions: 65x32x32mm
• Weight: 49г

Package contents:

• 1x Steadyview X receiver module

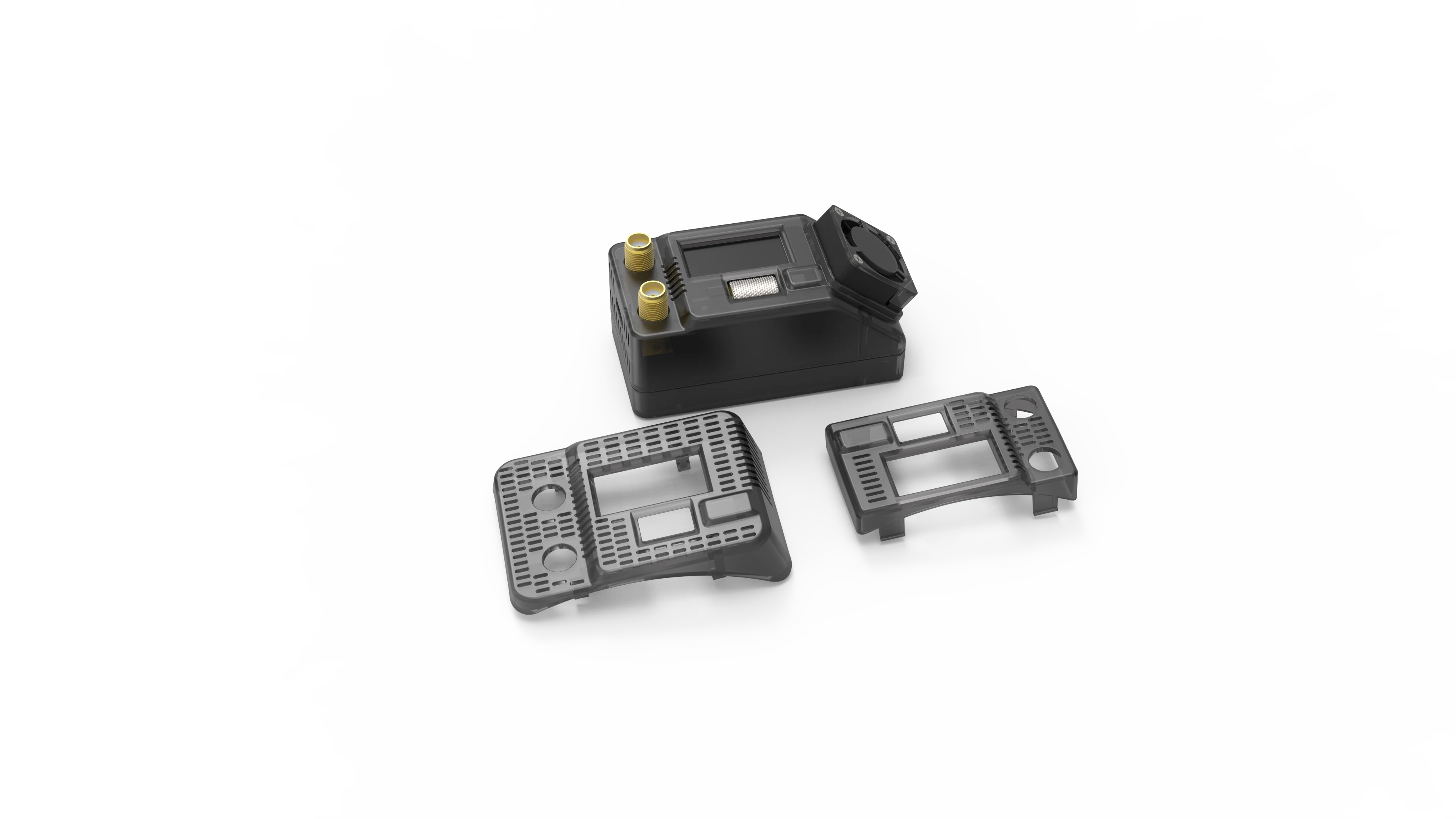

• 1x SKY04/EV300O/COBRA/Fatshark module compartment cover
• 1x Ground station kit
• 1x Power cable with XT60-Barrel connector
• 1x 3.5 mm video output cable
• 1x RHCP patch
• 1x 1 omi antenna
