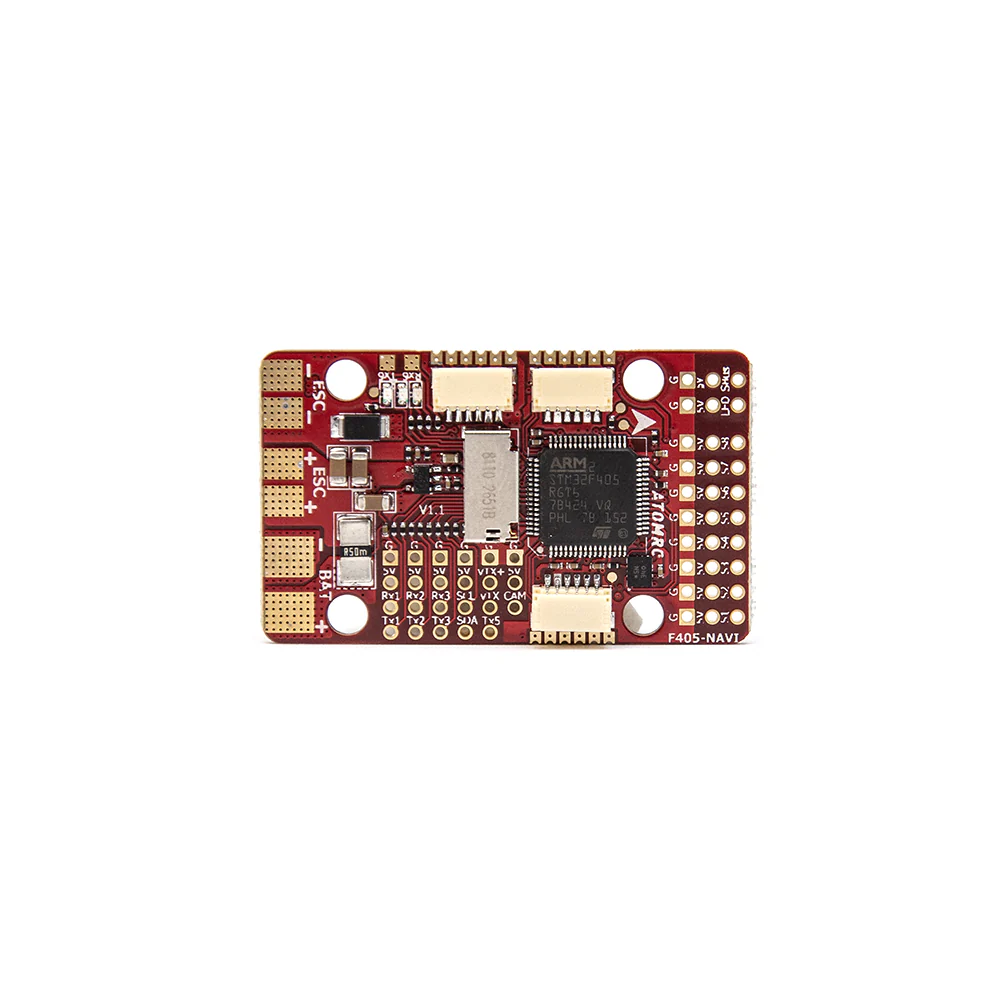

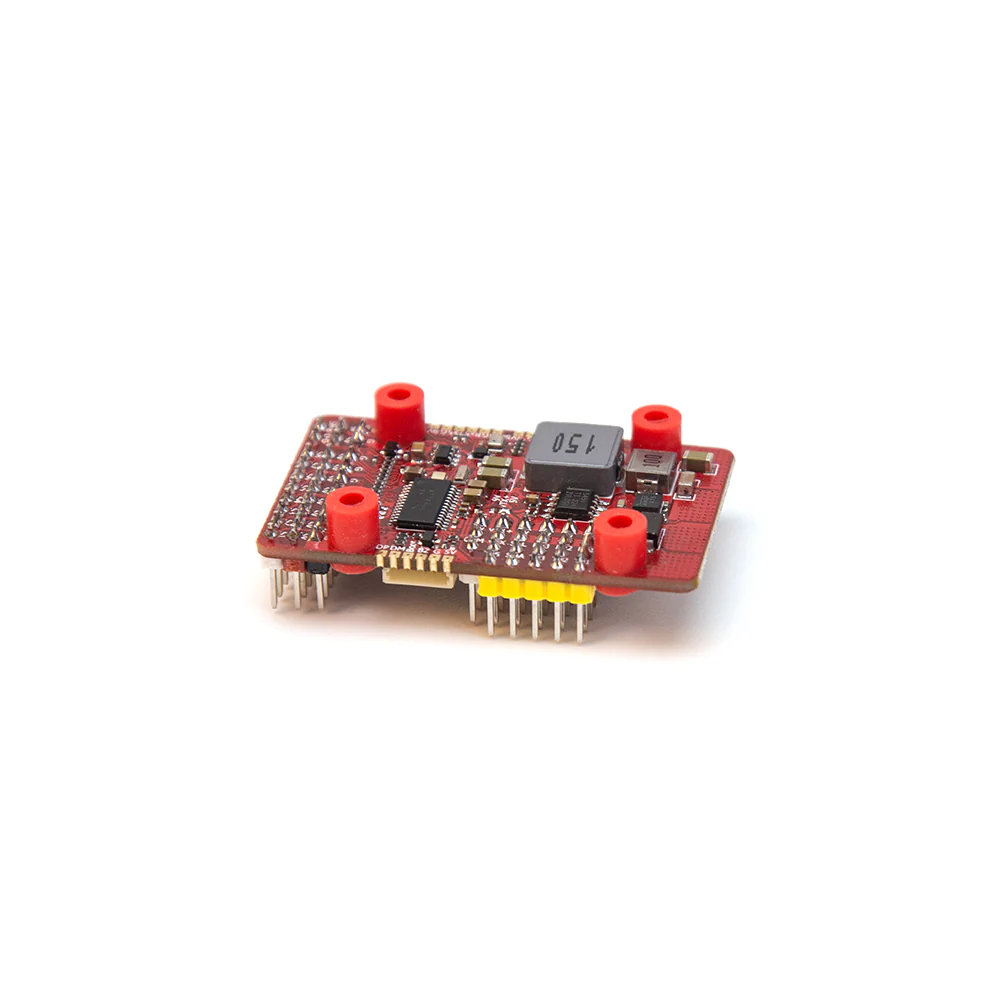

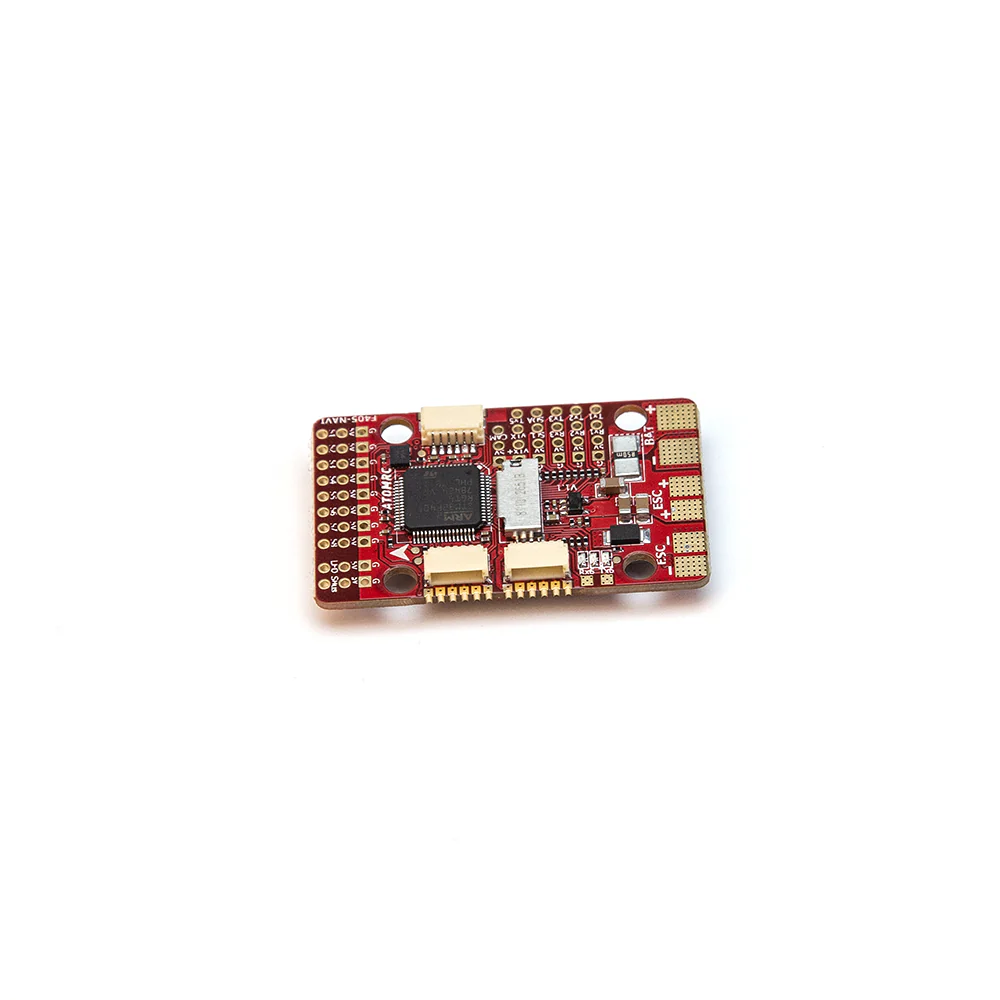

ATOMRC F405 NAVI Flight Controller

Take your flying to new heights with the ATOMRC F405 NAVI Flight Controller! With support for INAV/Ardupilot firmware, this controller is a must-have for any serious drone pilot.

Specifications:
• MCU: STM32F405RGT6, 168MHz , 1MB Flash
• IMU: BMI270
• Baro: SPL06-001
• OSD: AT7456E
• Blackbox: SD card Slot
• 5x UARTs,
• 8x PWM outputs
• 1x I2C
• 3x ADC (VBAT, Current, RSSI)
• External Type-C port and Buzzer
• Inverter on UART2-RX for SBUS

Power:
• 12~30V(3~6s Lipo)
• 120A Current Sensor
• BEC 5V 5A for servos
• 9V 2A BEC for VTX and camera
• FC Firmware
• ArduPilot: ATOMRC F405NAVI
• INAV: ATOMRC F405NAVI (INAV 5.0 or newer)

Physical:
• Dimensions: 30 *50*12mm
• Mounting: 30*24mm, Φ3m
• Weight: 21g

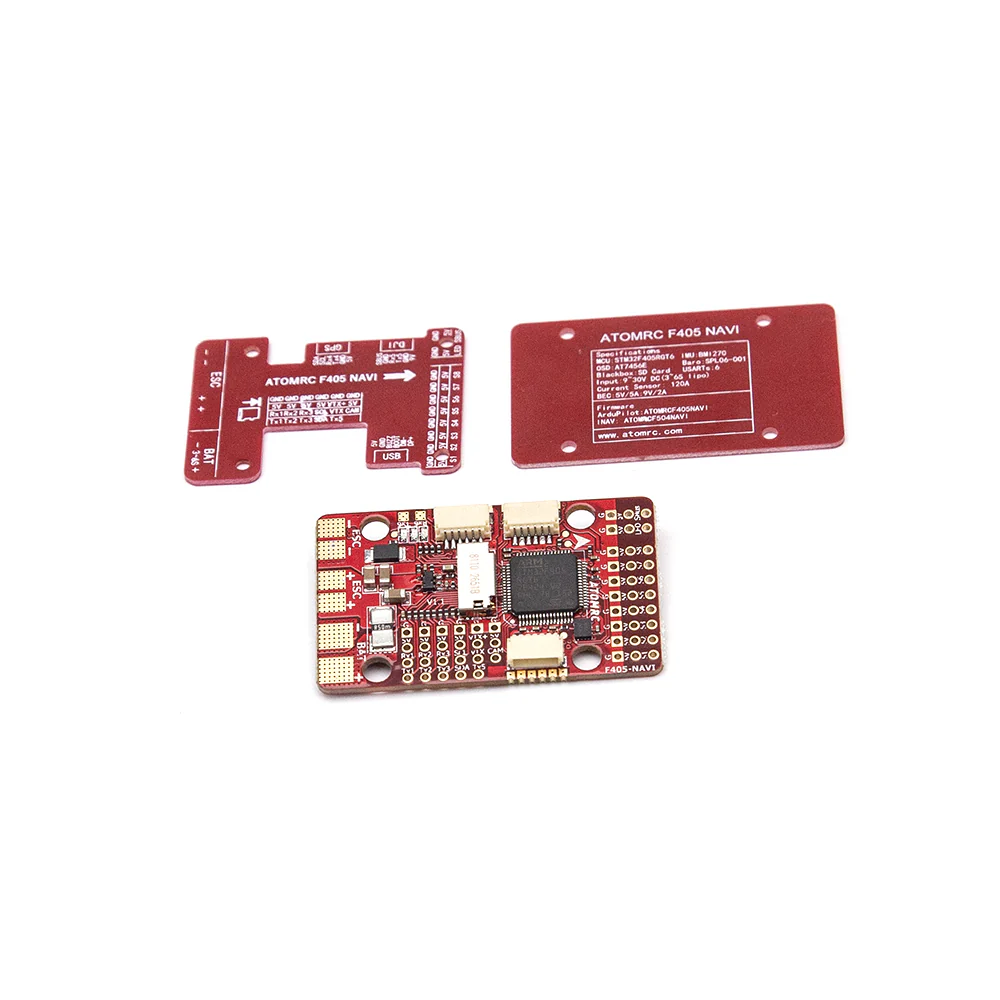

Including:
• 1x F405NAVI

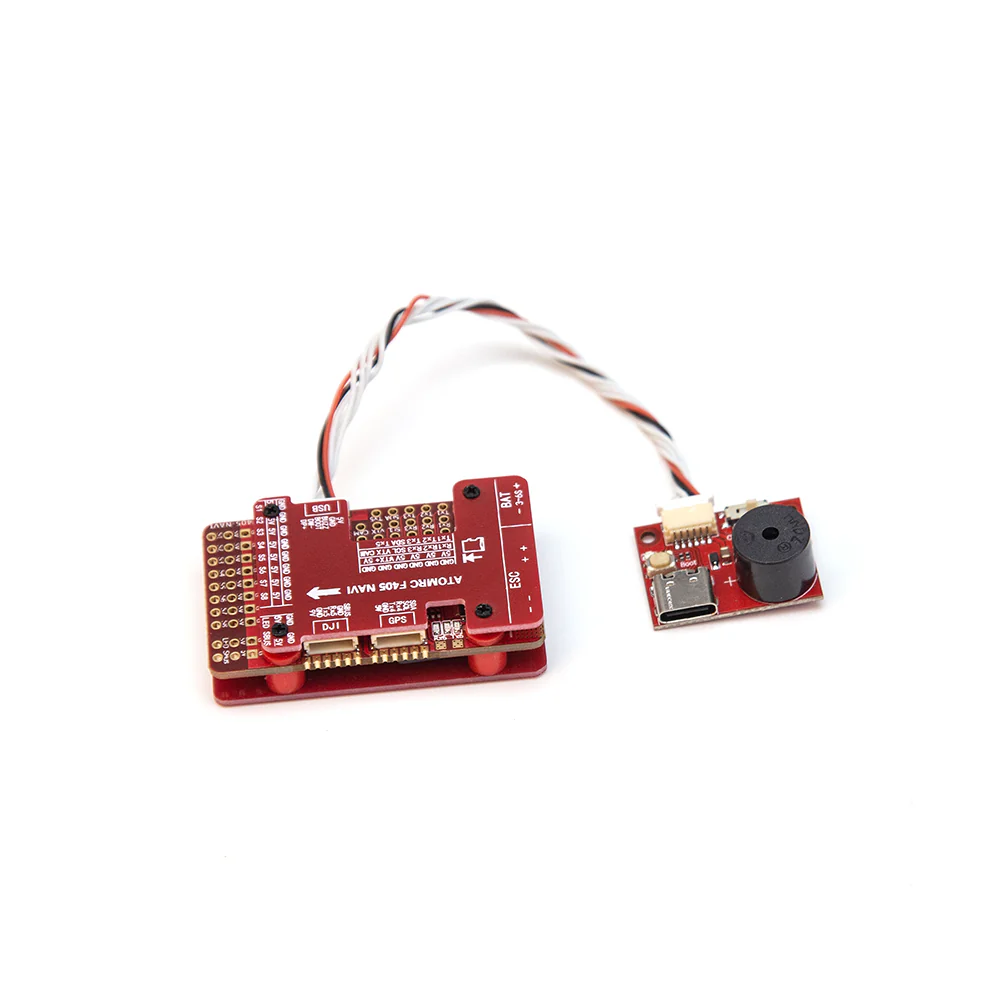

• 1x external USB(Type-C)/buzzer board + 12cm JST-SH-6P to JST-SH-6P cable

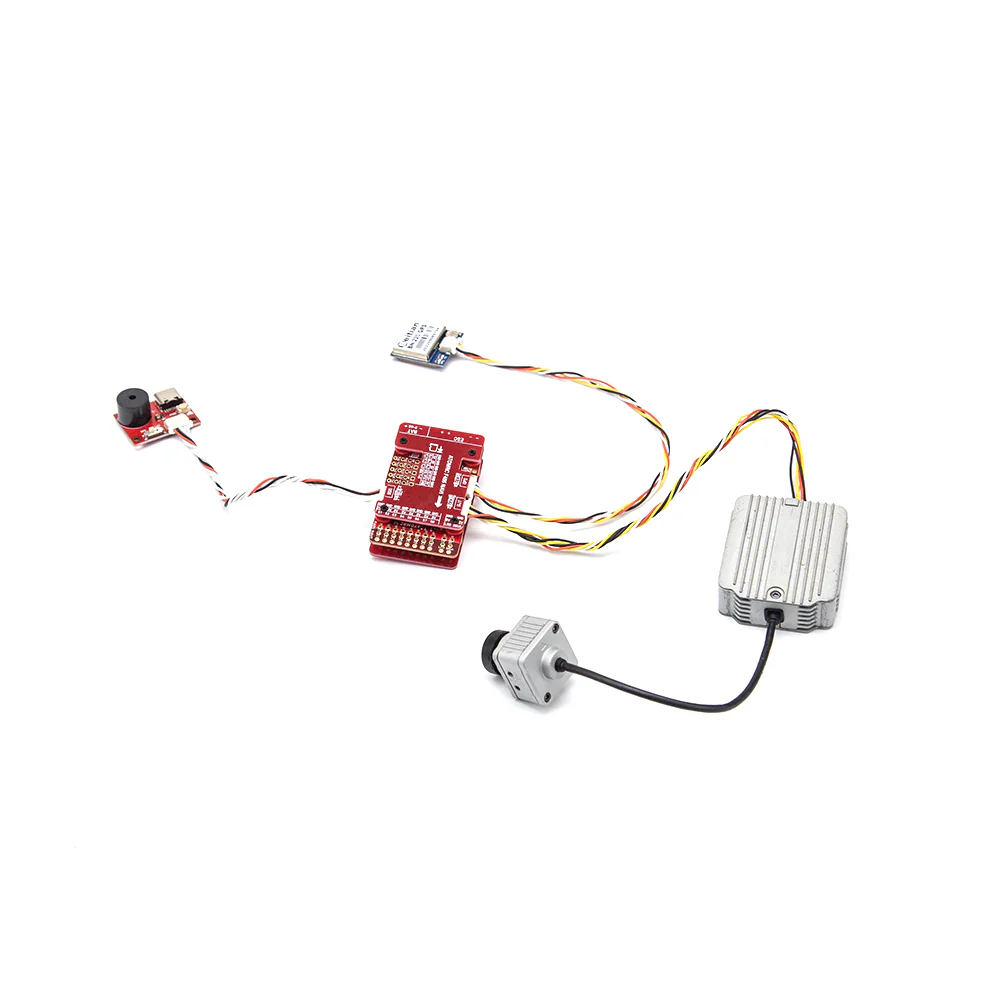

• 20cm JST-SH-6P cable* for GPS/ DJI air unit
• 35V 470uf Capacitor
