HAKRC F405V2 50A BLS Fly Tower

HAKRC 50AF4 flying tower is equipped with BLS 50A four-in-one ESC and F405 flight control, which provides powerful power with a 30.5x30.5mm installation.

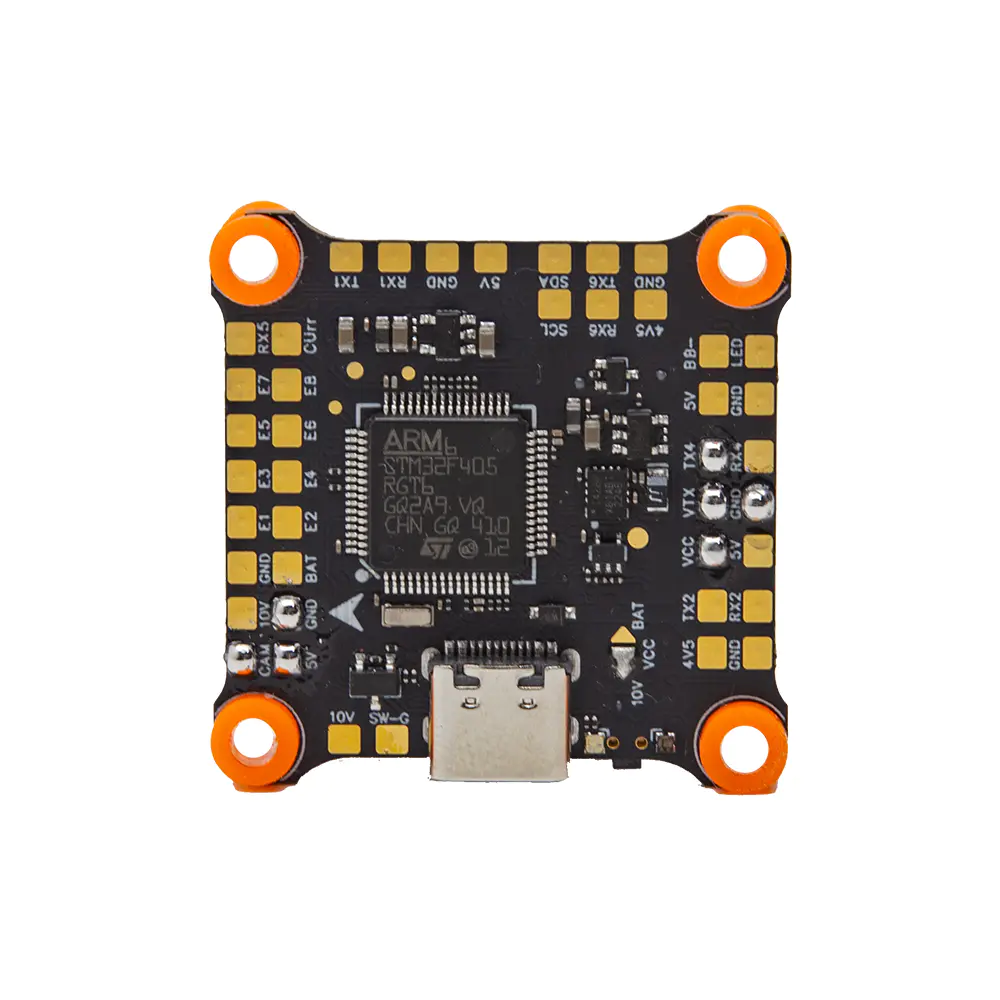

F405 FC Specifications:
Product size: 36x36mm
Installation hole distance: 30.5x30.5mm
Weight: 8.5g
MCU: STM32F405RE6
Blackbox: 16MB
BEC：5V/3A ; 10V/2.5A
Input voltage: 2—6S
Firmware: HAKRCF405V2
Uart serial port: 5

BLS 50A ESC Specifications：
Size: 38.5mm * 41mm
Net weight of electric adjustment: 12.5g
Fixed hole spacing: 30.5mm * 30.5mm
Continuous current: 50A
Maximum current: 60A
Input voltage: 2-6S
Current ratio: 160
Firmware: BLHeliSuite16.7.14.9.0.3
Driver signal support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600

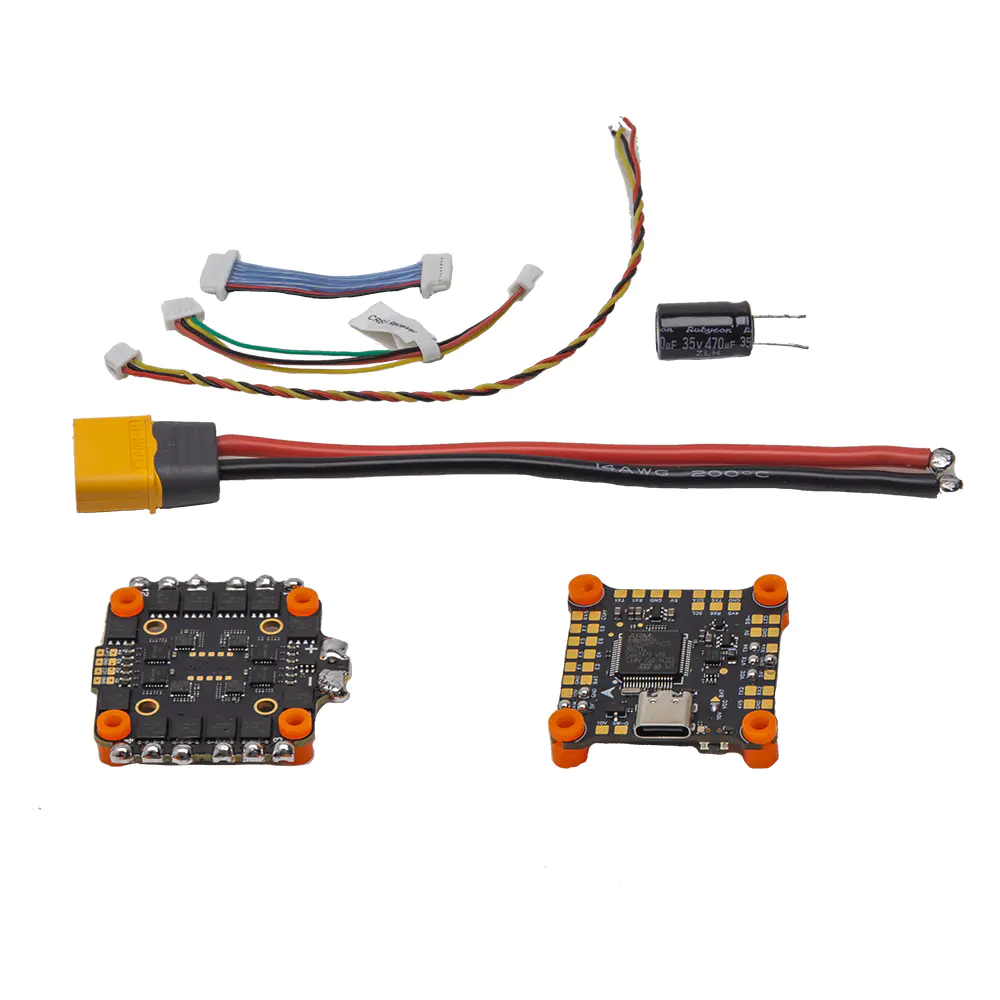

HAKRC F405 V2+50A BLS Package:
HAKRC F405V2 FC *1
HAKRC BLS 50A6S ESC*1
8P connection line x1
CRSF 4P line *1
3P line *1
Capacitor (35v470uf)*1
XT60 power head(14awg)*1
(M3x25mm screw) *4
M3 nut *4
M3 orange shock absorber ball *8
